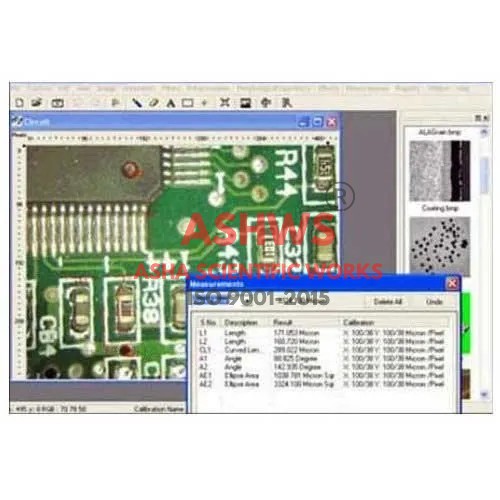

MICRO MEASUREMENT SOFTWARE

Description:



IMAGE EDITING
  • Cut, Copy, and Paste.
  • Selected copy by free hand AOL controlled by four arrow keys available on keyboard or mouse with zoom preview.
  • Crop, duplicate, restore
  • Resize
  • Compression
  • Conversion to other format BMP, JPG, TIF, PNG, GIF & PSD
  • Flood fill or spray with selected color at selected portion.
  • Grid creation; 5X5, 10X10 & 100X100 lines.
  • Drawing tool curve, line, square, and circle with node control and provision to change color & thickness of the line
  • Write text in any color or font.
  • Pointer to place on an object in four directions with provision to change its color & thickness.
  • Eraser works only on line, arrow or on any drawing tool.(not on original image)
  • Camera Lucida
  • Montage feature to merge stored image together. Useful to Merge different focuses of same image.
  • Image stitching.
  • Highlighter.
  • Pixel by Pixel Correction by key board.
  • Multiple image folder with Search facility.
  • Filter application on selected area.
VIEW & IMAGE PROCESSING
VIEW

    • Zoom in/out
    • Zoomed preview
    • Rotation at 90, 180,270 or custom
    • Image flipping; horizontal or vertical axis
    • Intensity histogram.
    • Image Information
    • Redo/Undo on all operations.
    • Ruler in Various units.
    • Slide show.

IMAGE PROCESSING

    • Background subtraction and contrast enhancement of color or monochrome images
    • Arithmatic image functions (Boolean Math; Add, AND, OR, XOR, DIFF, MIN, MAX, +, -, /, *, And Simple).

ROUTINE FILTERS

    • Invert, Brightness, Contrast, Hue, Saturation, Blur, Noise Remove, Emboss, Engrave, Gamma R, Gamma G, Gamma B, Yellow, Magenta, Cyan, Mosaic, Smooth, Desaturation, Pseudo Color, Colorize, Oilify, Despeckle, Postarize.

SPECIAL FILTERS & KARNELS

  • High Boost, High Spatial, Low Pass Spatial, Ranking (Max, Med, Min), Point detection, Line detection, Homogeneity.
EDGE DETECTION & REPORT
EDGE DETECTION

    • Laplacing, Sobel, Kirsch, Prewitt Gradient, Shift & Difference, Combine, Contrast Base, Quick, Range And Variance.

MORPHOMETERY

    • Skelotizing, Pruning, SKIZ, Histogram Equalization, Histogram Smoothing, Histogram Peak, Histogram Valley, Segmentation by Over/Under and Quantized, Contouring, Dilation / Erosion on Binary, Gray & colored Images, Opening/ Closing on Gray & Binary Images, Special Opening/Closing, Split/Combine Of RGB, YUV, YIQ, XYZ, & HSL, Changing any Image to 1, 4, 8 & 24 Bits, Medial Axis. Transformation, Halftone.
    • Image Addition, Image Average, Image Subtraction, Image Multiplication.

MEASUREMENT

    • Spartial calibration
    • Line measurements for Distance, Length, Width, Perimeter, Angle, Three Point Radius.
    • Area by enclosed line controlled by four arrow keys available on keyboard arrows with zoomed preview.

REPORT

  • Three options: Direct printout with original image processed Image & Tabular results
  • Export to MS Office or Excel for further modification.
