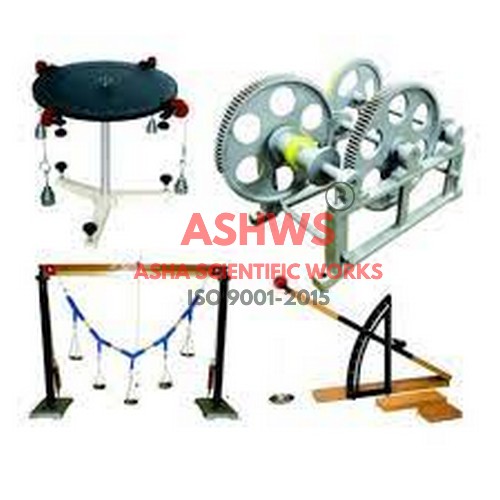

APPLIED MECHANICS LAB EQUIPMENTS

Description:



100900 Universal Force Table (Superior) with Brass Slotted Weights & Brass Pulleys
100901 Universal Force Table (Normal) with Iron Slotted Weights & Aluminium Pulleys
100902 Link Polygon Apparatus without Weights
100903 Apparatus to Study Equilibrium of Non Concurrent Forces with Iron Slotted Weights
100904 Parallelogram of Forces Apparatus with Iron Slotted Weights
100905 Polygon of Forces Apparatus with Iron Conical Weights & Pan
100906 Triangle & Parallelogram of Forces Apparatus with Iron Slotted Weights
100907 Polygon & Triangle of Forces Apparatus with Iron Slotted Weights
100908 Polygon of Forces Apparatus with Iron Slotted Weights & Pans
100909 Law of Conservation of Mass Apparatus without Weights

(a) To Verify The Law of Forces in Two Dimensions

(b) To Verify The Law of Forces in Three Dimensions

100910 Parallel Forces Apparatus (Tubular Spring Balance) with 1 Kg Iron Conical Weights 2 Pc.
100911 Parallel Forces Apparatus (Dial Type Balance) with 1 Kg Iron Conical Weights 2 Pc.
100912 Parallel Forces Apparatus (Overhang Beam Type) with 1 Kg Iron Conical Weights 2 Pc.
100913 Apparatus for Reaction of Forces in Beam Dial Type Balance 20 Kg with Iron Conical Weights.
100914 Bell Crank Lever on Angle Iron Base with Weights
100915 Bell Crank Lever on Wooden Base without Weights
100916 Compound Lever (with Weights)
100917 Cranked Compounded Lever (with Weights)
100918 Lever Apparatus (with Weights)
100919 Moments Disc Apparatus (without Weights)
100920 Law of Moments Apparatus (without Weights)
100921 Cantilever Beam Apparatus
100922 Structural Mechanics Apparatus (Complete Set)

(a) Single Cantilever

(b) Cantilever with Four Members

(c) Simple Roof Truss

(d) Roof Truss with Angled Tie Rods

(e) A Composite Frame Work

(f) King Post Roof Truss

(g) Standard Roof Truss

(h) Roof Truss with Loads or Standard Roof Truss

(i) Mansard Roof Truss

(j) Island Roof Truss

(k) N Type Girder

(i) Warren Girder

(m) Framed Arc

(n) North Light Roof Truss

100923 Jointed Roof Truss on Wheels (without Weights)
100924 Shear Legs Apparatus (without Weights)
100925 Simple Jib Crane (without Weights)
100926 Jib Crane with Iron Base & Tubular Type Compression Balance (with Weights)
100927 Geared Jib Crane (without Weights)
100928 Friction Slide Apparatus (without Weights)

(a) Superior Quality

(b) Normal Quality

100929 Inclined Plane Normal Quality (without Weights)
100930 Inclined Plane Superior Quality (without Weights)
100931 Combined Inclined Plane & Friction Slide Apparatus

(a) with Wooden Base & without Weights

(b) with Angle Iron Base & with Weights

100932 Coil Friction Apparatus (without Weights)
100933 Combined Coil & Flat Belt Friction Apparatus ( without Weights)
100934 Combined Coil & ‘V’ Belt Friction Apparatus (without Weights)
100935 Combined Coil, Flat & ‘V’ Belt Friction Apparatus without Weights)
100936 Rope Brake & Dynamometer (with Weights)
100937 Prony Brake Dynamometer (with Weights)
100938 Pulley Blocks Brass, 8 cm Dia & 6 mm Grove

(a) Single

(b) Double

(c) Triple

100939 Pulley Blocks Brass, 5 cm Dia & 6 mm Grove

(a) Single

(b) Double

(c) Triple

100940 Pulley Blocks Aluminium, 8 cm Dia & 2 cm Grove

(a) Single

(b) Double

(c) Triple

100941 Pulley Blocks Aluminium, 8 cm Dia & 1 cm Grove

(a) Single

(b) Double

(c) Triple

100942 Double Shave Pulley Block (with Weights)
100943 Differential Pulley Block Model (without Weights)
100944 Pulley Demonstration Set (with Weights)
100945 Pulley System Different Type (without Weights)

(a) First System Pulleys

(b) Second System Pulleys

(c) Third System Pulleys

(d) Frame for Above

100946 Chain Pulley Blocks (without Weights)

(a) Worm Gear Type (1 Ton)

(b) Spur Gear Box Type (1 Ton)

(c) Weston’s Differential, Triple Purchase (1 Ton)

100947 Compound Wheel & Axle 35 cm Dia (without Weights)
100948 Wheel & Differential Axle 30 cm Dia (without Weights)
100949 Wheel & Differential Axle 20 cm Dia (without Weights)
100950 Wheel & Axle Simple Wooden (without Weights)
100951 Winch Crab Single Purchase (without Weights)
100952 Winch Crab Double Purchase (without Weights)
100953 Worm & Worm Wheel (without Weights)

(a) Single

(b) Double

(c) Triple

100954 Worm & Worm Wheel Small (without Weights)
100955 Apparatus to Find The Personal of a Man
100956 Screw Efficiency Apparatus (without Weights)
100957 Screw Jack (without Weights)
100958 Screw Jack Small Size (without Weights)
100959 Compound Screw Jack (without Weights)
100960 Compound Screw Jack with Transverse Motion

(without Weights)

100961 Deflection of Beam Apparatus (without Weights)
100962 Bending of Beam Apparatus (without Weights)
100963 Elasticity of Flexture Apparatus (without Weights)
100964 Shear Force Apparatus (with Weights)
100965 Bending Moment Apparatus (with Weights)
100966 Stresses in Beam Apparatus (with Weights)
100967 Compression of Coiled Springs (without Weights)
100968 The Combined Compression & Extension of Springs Apparatus (without Weights)
100969 Hook’s Law Apparatus (with Weights)
100970 Young’s Modulus Apparatus Searl’s Pattern with Brass Frame (without Weights)
100971 Young’s Modulus Apparatus Vernier Type (without Weights)
100972 Young’s Modulus of a Metal Rod By An Interference Method (without Weights)
100973 Rigidity of Wires with Stand
100974 Maxwell Vibration Needle
100975 Torsion Apparatus Clamp Pattern (without Weights)
100976 Torsion Apparatus Searle’s Type (without Weights)
100977 Torsion Apparatus Vertical Type (without Weights)
100978 Second Law of Motion Apparatus
100979 Simple Pendulum
100980 Bar Pendulum or Compound Pendulum
100981 Kater’s of Reversible Pendulum
100982 Moment of Inertia of Flywheel (without Weights)

(a) 15 cm Dia

(b) 20 cm Dia

(c) 25 cm Dia

(d) 30 cm Dia

100983 Moment of Inertia of (without Weights)

(a) 37 cm Dia

(b) 45 cm Dia

100984 Fletcher Trolley (Complete with Weights)
100985 Atwood Machine (Complete with Weights)
100986 Stop Watch

(a) Digital

(b) Mechanical

100987 Apparatus to find Center of Gravity
100988 Centrifugal Force Apparatus
